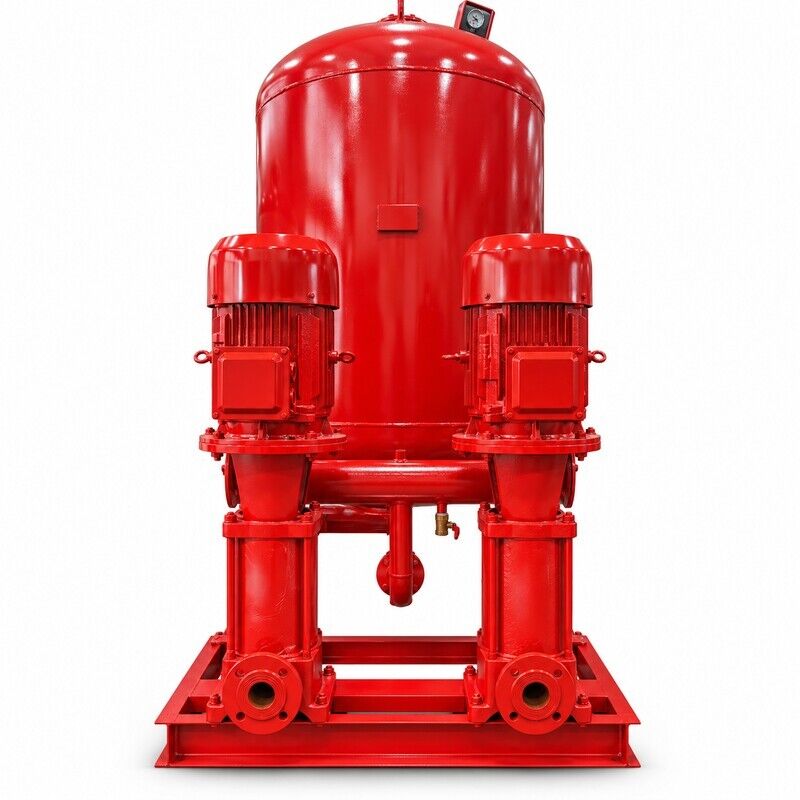

Custom Jockey Pump System with Pressure Tank

PRODUCT OVERVIEW

YIDISHUI PUMP supplies custom jockey pump systems with pressure tanks for fire water pressure maintenance. Pumps, tank arrangements and pipework are configured to match the confirmed project requirements.

PUMP OPTIONS AND MATERIALS

Vertical inline single-stage and vertical multistage pump options are available for selection. The standard single-stage pump configuration uses a ductile iron casing and stainless steel impeller. The standard multistage pump configuration uses stainless steel wetted components. Final material grades are confirmed for the selected model.

PROJECT CONFIGURATION

Pump quantity, tank capacity, working pressure, motor power, voltage, frequency, connections and layout are selected for each order. Control panels, instruments and accessories are supplied according to the agreed equipment list and control scheme.

CUSTOM SUPPLY

Systems can be configured for the available installation space and site piping requirements. OEM/ODM requirements and project drawings are welcome.

SELECTION INFORMATION

Please provide the required flow, pressure or head, power supply, installation dimensions and project specifications. We will confirm the suitable pump models and system configuration.

WORKSHOP CONFIGURATION EXAMPLES

The photos show different system configurations and workshop assembly or packing stages. Pump models, equipment quantities, tank arrangements and accessories may vary between orders. Final supply is determined by the confirmed technical specification.
