Integrated VFD Water Supply Pump Unit with Control Cabinet

PRODUCT OVERVIEW

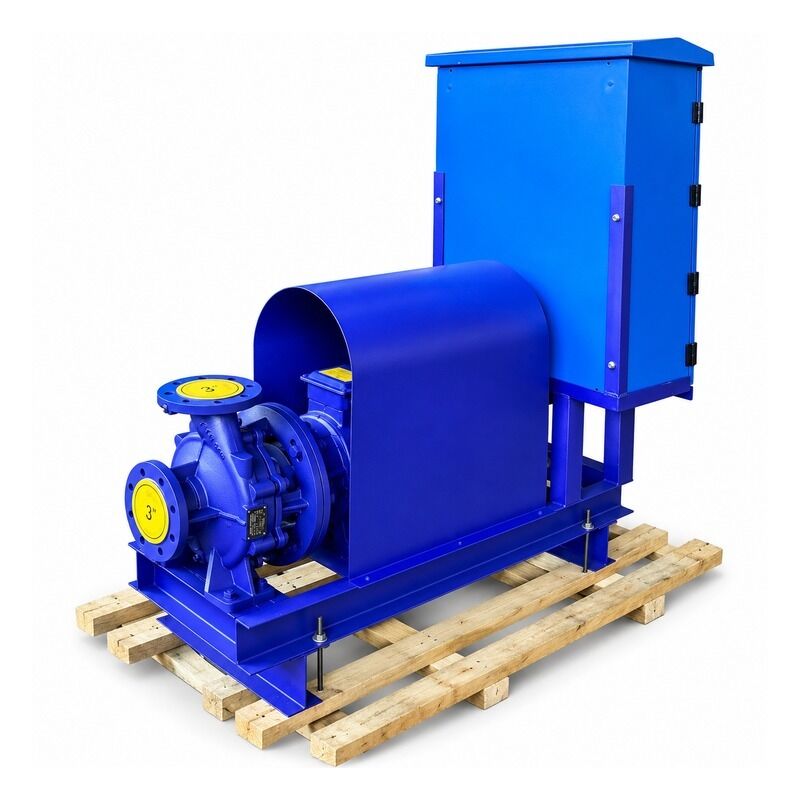

YIDISHUI PUMP manufactures integrated variable frequency water supply pump units. The photographed configuration combines a centrifugal pump, a covered motor and a VFD control cabinet on a common steel base.

VARIABLE SPEED CONTROL

The variable frequency drive controls motor speed according to the agreed control scheme. Sensors, operating setpoints, automatic control functions and electrical protection are specified for each order.

STRUCTURE AND MATERIALS

Our standard single-stage pump configuration uses a ductile iron casing and stainless steel impeller. Final material grades, seals, cabinet construction and component specifications are confirmed for the selected configuration.

PROJECT CONFIGURATION

Flow rate, head, motor power, voltage, frequency, connection sizes, cabinet protection requirements and overall layout are selected according to the installation conditions and project requirements.

CUSTOM MANUFACTURING

OEM/ODM support is available. Drive brands and models, electrical components, cabinet dimensions, motor covers and accessories are defined in the confirmed technical specification and equipment list. The cabinet interior photograph shows one production configuration.

SELECTION INFORMATION

Please provide the required flow and head, power supply, control requirements, installation environment and available dimensions. These details are used to select the pump, motor and control configuration.

FACTORY BATCH EXAMPLE

The factory photograph shows a batch of integrated pump units during production preparation. Equipment dimensions, control layouts and accessories may vary between orders. Final supply follows the confirmed order requirements.
