Custom Skid-Mounted Fire Pump System - Malaysia Project
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Certification: ISO 9001:2015; ISO 14001:2015; ISO 45001:2018 (company management systems)
Model Number: Project-specific configuration
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Supply Ability: Project-based custom production
Main Pump Configuration: |
Electric Main Pump + Diesel Main Pump |
Jockey Pump Configuration: |
Two Vertical Jockey Pumps |
Flow Rate: |
Selected To Project Duty Point |
Head: |
Selected To Project Duty Point |
Casing Material: |
Ductile Iron; Subject To Confirmed Order |
Impeller Material: |
Stainless Steel; Grade Confirmed Per Order |
Motor And Power Supply: |
Power, Voltage And Frequency Confirmed Per Project |
Pipe Connections: |
Flanged; Sizes And Ratings Confirmed Per Project |
Main Pump Configuration: |
Electric Main Pump + Diesel Main Pump |
Jockey Pump Configuration: |
Two Vertical Jockey Pumps |
Flow Rate: |
Selected To Project Duty Point |
Head: |
Selected To Project Duty Point |
Casing Material: |
Ductile Iron; Subject To Confirmed Order |
Impeller Material: |
Stainless Steel; Grade Confirmed Per Order |
Motor And Power Supply: |
Power, Voltage And Frequency Confirmed Per Project |
Pipe Connections: |
Flanged; Sizes And Ratings Confirmed Per Project |
PRODUCT OVERVIEW

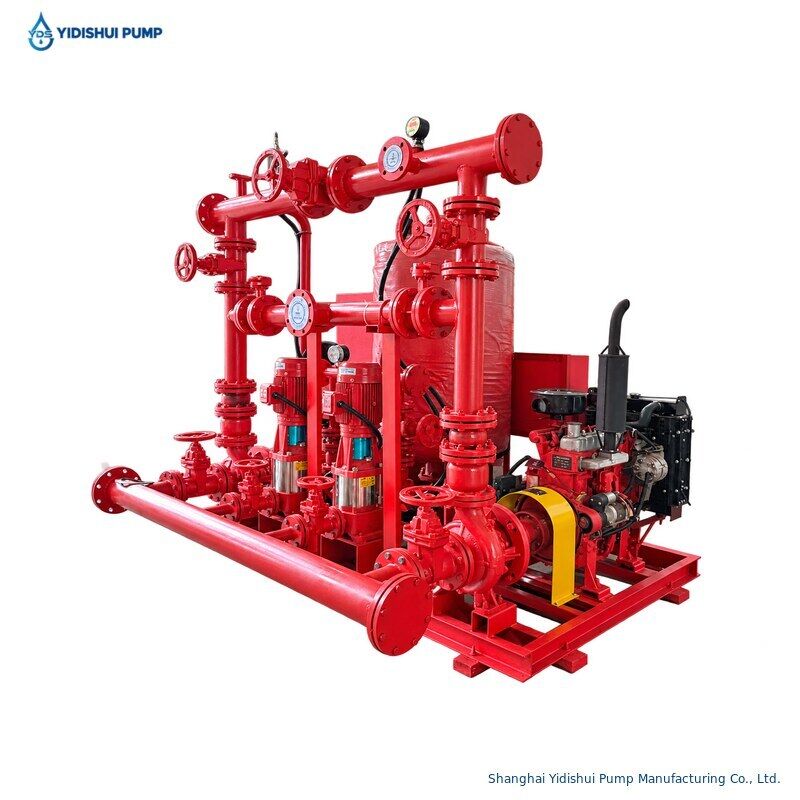

Shanghai Yidishui Pump Manufacturing Co., Ltd. supplied this custom skid-mounted fire pump system for a project in Malaysia. The system integrates main pumping and pressure-maintenance equipment with pipework and controls on a common skid base.
PACKAGE CONFIGURATION
The project package combines an electric motor-driven main pump, a diesel engine-driven main pump and two vertical jockey pumps. Supporting equipment includes a tank, control panels, manifolds, valves and instruments.
The equipment arrangement and component selection are configured according to the project’s technical requirements.
MATERIALS
Our standard pump supply configuration uses a ductile iron casing and a stainless steel impeller, subject to the confirmed order specification. Material grades and other component materials are confirmed per order.
SELECTION AND CUSTOM SUPPLY
Flow, head, motor power, voltage, frequency, connection sizes and control requirements are selected according to the project duty point and technical specifications.
OEM/ODM and single-set custom orders are supported. Customers may provide drawings or operating requirements for equipment selection and quotation.
