Custom Skid-Mounted Fire Pump System

Product Overview

YIDISHUI PUMP supplies packaged fire pump systems configured for project-specific fire-water requirements. A typical package combines diesel engine driven and electric motor driven fire pumps, a jockey pump, control panels, pipework, valves and instruments on a common steel base frame.

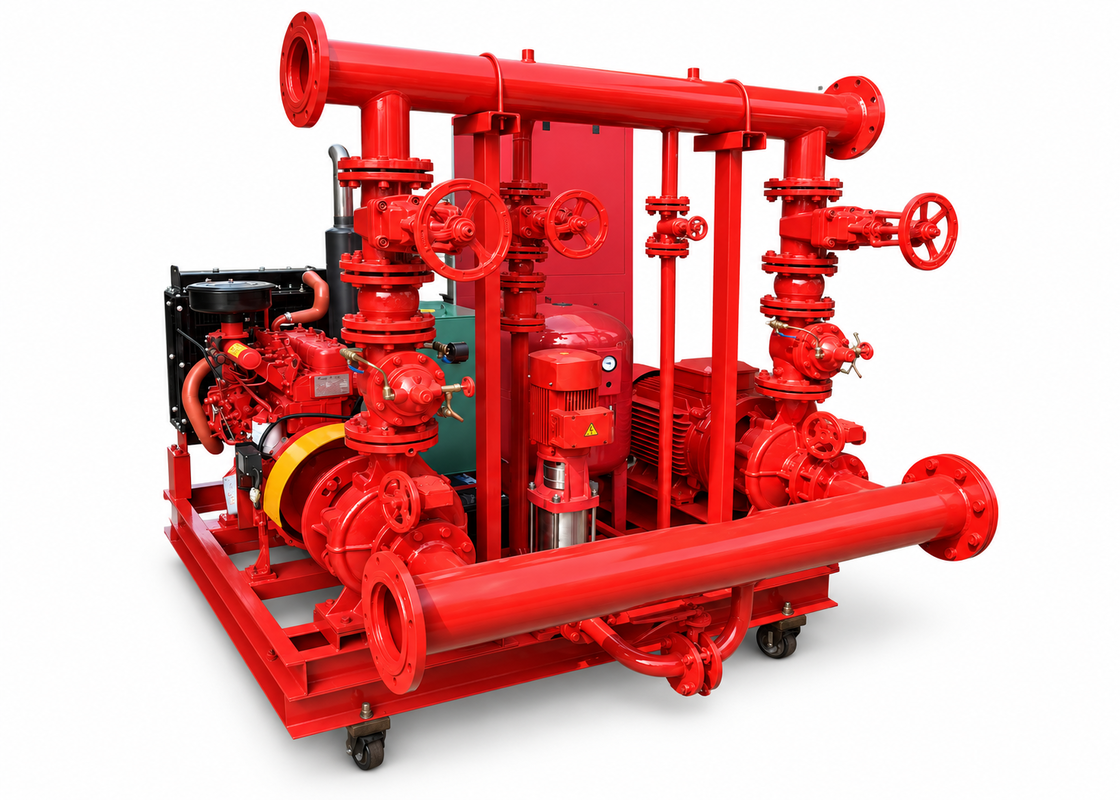

The photograph shows a typical configuration. Final equipment, component selection and layout are determined by the confirmed project requirements and technical proposal.

Typical Package Components

• Diesel engine driven fire pump and associated engine equipment.
• Electric motor driven fire pump.
• Jockey pump for system pressure maintenance.
• Pump control panels.
• Suction and discharge manifolds, valves and instruments.
• Pressure tank where specified.
• Common steel base frame.

The number of pumps, drive arrangement and accessories are defined in the agreed scope of supply.

Custom Configuration

Flow, pressure, pump structure, motor power, engine selection, electrical supply and connection sizes are selected for the required duty. The package layout considers available installation space, site connections and maintenance access.

Control functions and the pump operating sequence are defined in the confirmed control scheme. Pressure-tank capacity, monitoring functions and other accessories are specified according to the project.

Configuration Summary

Project Selection

For installations with space or access restrictions, please provide the proposed equipment location and available dimensions. Pipe connection positions and maintenance access should be considered when confirming the package layout.

Please send the required flow and pressure, electrical supply, preferred pump arrangement, installation location and quantity. A pump schedule or layout drawing will help us define a suitable configuration and prepare the technical proposal.
