Pressure-Controlled DOL Pump Control Panel
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Model Number: YDS-XFZ-11
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Starting Method: |
Direct-on-line (DOL) |
Pump Quantity: |
1 For Shown Configuration |
Control Input: |
External Pressure-Control Signal |
Operating Mode: |
Manual / Off / Auto |
Motor Rating: |
11 KW For Shown Unit; Other Ratings On Request |
Rated Voltage: |
380 V For Shown Unit; Other Voltages On Request |
Enclosure Protection: |
According To Confirmed Configuration |
Starting Method: |
Direct-on-line (DOL) |
Pump Quantity: |
1 For Shown Configuration |
Control Input: |
External Pressure-Control Signal |
Operating Mode: |
Manual / Off / Auto |
Motor Rating: |
11 KW For Shown Unit; Other Ratings On Request |
Rated Voltage: |
380 V For Shown Unit; Other Voltages On Request |
Enclosure Protection: |
According To Confirmed Configuration |
Product Overview
YIDISHUI PUMP manufactures pressure-controlled DOL control panels for electric pump systems. The illustrated configuration controls one pump through an external pressure-control signal.
Panel Configuration

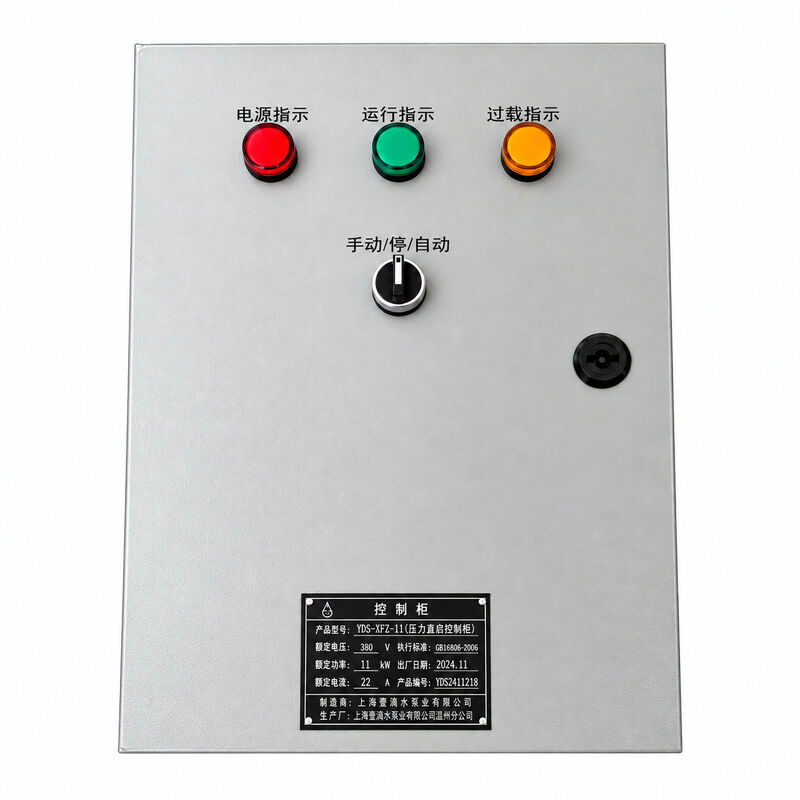

The shown panel includes Manual/Off/Auto selection, power indication, running indication and an overload indicator. The pictured unit carries an 11 kW, 380 V nameplate rating.
Customization and Supply
Motor ratings, power supply, pressure-control requirements, component brands and cabinet dimensions are confirmed for each project. Panels can be supplied separately or matched to a pump installation. Please provide the motor data and required control sequence for configuration and quotation.
