Three-Pump DOL Control Panel – Two Duty One Standby
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Model Number: Multiple Models
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Starting Method: |
Direct-on-line (DOL) |
Pump Quantity: |
3 For Shown Configuration |
Pump Arrangement: |
Two Duty Pumps And One Standby Pump |
Operating Mode: |
Manual / Off / Auto |
Control Input: |
According To Agreed Control Scheme |
Motor Rating: |
According To Pump Motor Requirements |
Rated Voltage: |
According To Project Requirements |
Enclosure Protection: |
According To Confirmed Configuration |
Starting Method: |
Direct-on-line (DOL) |
Pump Quantity: |
3 For Shown Configuration |
Pump Arrangement: |
Two Duty Pumps And One Standby Pump |
Operating Mode: |
Manual / Off / Auto |
Control Input: |
According To Agreed Control Scheme |
Motor Rating: |
According To Pump Motor Requirements |
Rated Voltage: |
According To Project Requirements |
Enclosure Protection: |
According To Confirmed Configuration |
Product Overview
YIDISHUI PUMP manufactures three-pump DOL control panels for systems using two duty pumps and one standby pump.
Panel Configuration

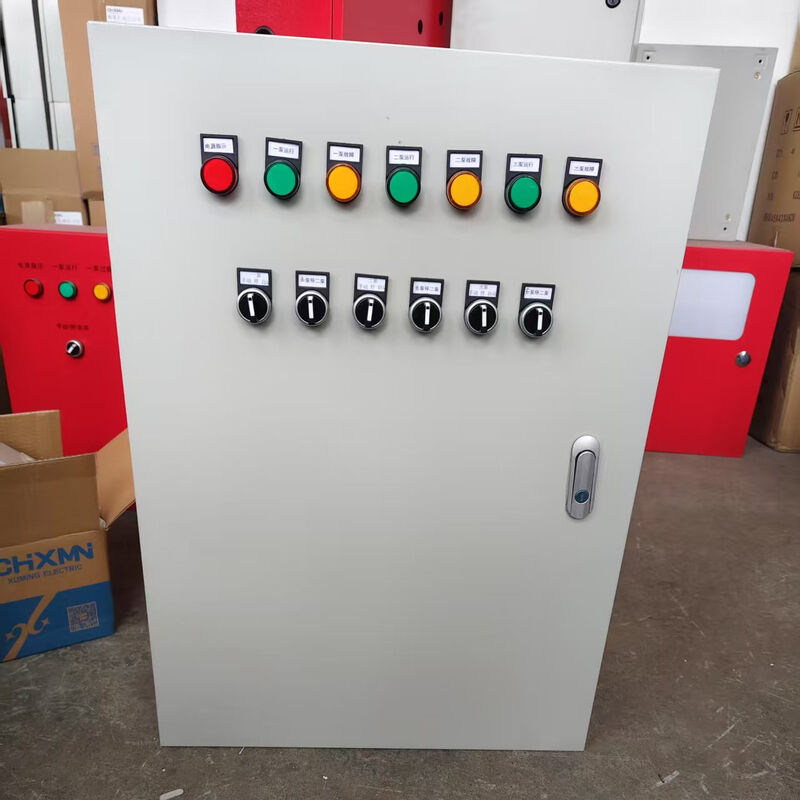

The illustrated cabinet contains three motor-starter circuits, individual front-panel selectors and pump-status indicators. Pump priority, operating sequence and standby changeover logic are defined in the agreed control scheme.
Customization and Supply
Pressure-control or float-switch interfaces can be specified according to the application. Motor ratings, power supply, component brands and cabinet dimensions are confirmed for each project. Panels can be supplied separately or matched to a pump system. Please provide the motor data for all three pumps and the required control sequence for quotation.
