Single Door DOL Fire Pump Control Panel
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Model Number: Multiple Models
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Starting Method: |
Direct-on-Line (DOL) |
Pump Configuration: |
Two Pumps In Shown Configuration |
Control Mode: |
Manual / Automatic |
Cabinet Type: |
Single Door Metal Enclosure |
Status Indication: |
Power / Running / Fault |
Motor Rating: |
Selected To Project Requirements |
Enclosure Protection: |
According To Confirmed Configuration |
Starting Method: |
Direct-on-Line (DOL) |
Pump Configuration: |
Two Pumps In Shown Configuration |
Control Mode: |
Manual / Automatic |
Cabinet Type: |
Single Door Metal Enclosure |
Status Indication: |
Power / Running / Fault |
Motor Rating: |
Selected To Project Requirements |
Enclosure Protection: |
According To Confirmed Configuration |
Product Overview

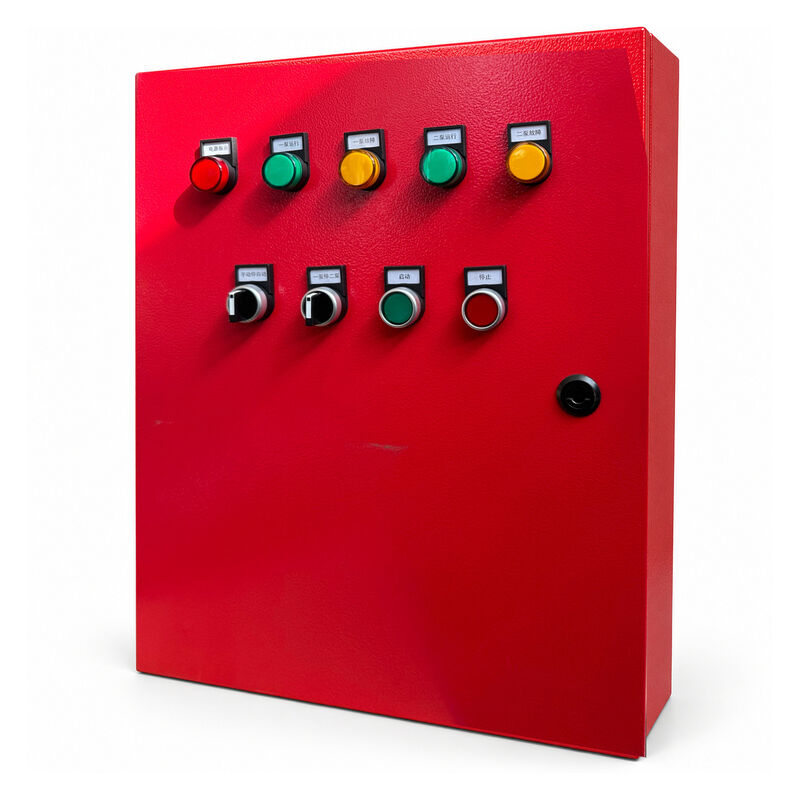

YIDISHUI PUMP supplies single door direct-on-line (DOL) control panels for electric fire pump installations. The illustrated compact panel includes controls for two pumps in a red metal enclosure.
Controls and Indication
The front door has power, pump running and fault indicators, mode and pump selection switches, and start and stop pushbuttons. Internal contactors, relays and terminals are arranged to the confirmed control scheme.
Project Configuration
Motor ratings, supply voltage, frequency, automatic start inputs and external interfaces are selected for each project. Cabinet dimensions, enclosure protection and component brands are confirmed before production. The panel can be supplied separately or with a matched electric fire pump package.
