DOL Fire Pump Control Panel with PLC and HMI
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Model Number: Multiple Models
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Starting Method: |
Direct-on-Line (DOL) |
Pump Configuration: |
Two Pumps In Shown Configuration |
Control System: |
PLC |
Operator Interface: |
HMI And Local Controls |
Analog Signals: |
Type And Quantity To Project Requirements |
Metering: |
Voltage And Current Meters |
Enclosure Protection: |
According To Confirmed Configuration |
Motor Rating: |
Selected To Project Requirements |
Starting Method: |
Direct-on-Line (DOL) |
Pump Configuration: |
Two Pumps In Shown Configuration |
Control System: |
PLC |
Operator Interface: |
HMI And Local Controls |
Analog Signals: |
Type And Quantity To Project Requirements |
Metering: |
Voltage And Current Meters |
Enclosure Protection: |
According To Confirmed Configuration |
Motor Rating: |
Selected To Project Requirements |
Product Overview

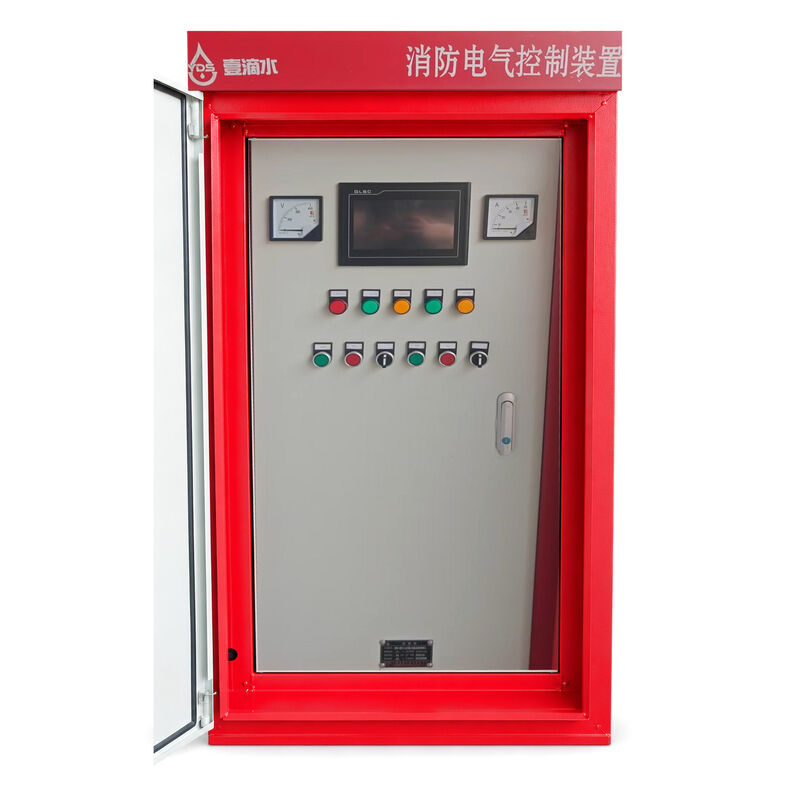

YIDISHUI PUMP supplies direct-on-line (DOL) fire pump control panels with PLC and HMI configurations. The illustrated panel includes a front display, voltage and current meters, status indicators and separate operating controls for two pumps.
Control Configuration
The internal assembly contains a PLC, contactors, relays, auxiliary power components and connection terminals. PLC logic, HMI pages, analog signal types and quantities, and external interfaces are specified for the project. Displayed information depends on the approved control program and connected instruments.
Cabinet and Supply
Motor ratings, supply voltage, frequency, cabinet dimensions, enclosure protection and component brands are confirmed before production. The panel can be supplied separately or with a matched electric fire pump package.
