Star-Delta Fire Pump Control Panel with Emergency Starting
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Model Number: Multiple Models
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Starting Method: |
Star-Delta (Y-Delta) |
Pump Configuration: |
Two Pump Circuits |
Emergency Starting Device: |
Selected To Confirmed Technical Scheme |
Control Interface: |
Digital Fire Pump Controller |
Cabinet Type: |
Top Hood With Outer And Inner Doors |
Enclosure Protection: |
According To Confirmed Configuration |
Motor Rating: |
Selected To Project Requirements |
Starting Method: |
Star-Delta (Y-Delta) |
Pump Configuration: |
Two Pump Circuits |
Emergency Starting Device: |
Selected To Confirmed Technical Scheme |
Control Interface: |
Digital Fire Pump Controller |
Cabinet Type: |
Top Hood With Outer And Inner Doors |
Enclosure Protection: |
According To Confirmed Configuration |
Motor Rating: |
Selected To Project Requirements |
Product Overview

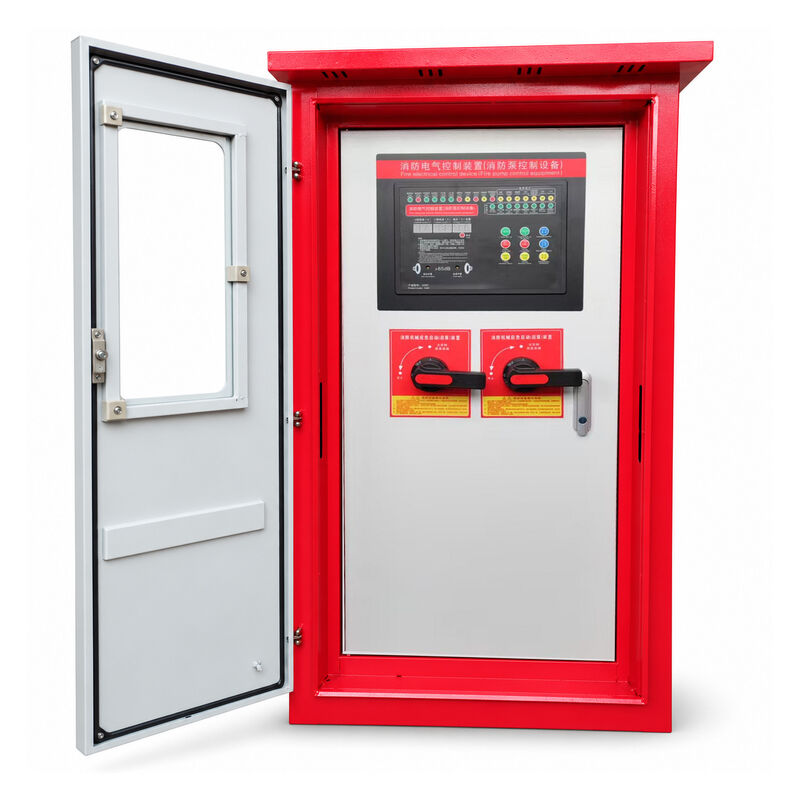

YIDISHUI PUMP supplies star-delta fire pump control panels with an emergency starting configuration selected for the project. The illustrated cabinet has a digital controller and two emergency operating handles.
Cabinet and Assembly
The cabinet has a projecting top hood, a windowed outer door and a separate inner control door. The internal assembly contains circuit breakers, emergency starting devices, contactors, auxiliary power components and terminals.
Project Configuration
The emergency starting device model, operating sequence, pump ratings, electrical supply and external interfaces are confirmed in the approved technical scheme. Enclosure protection, cabinet dimensions and component brands are specified for the selected configuration. Panels can be supplied separately or with fire pump equipment.
