DOL Fire Pump Control Panel with ATS and Mechanical Emergency Start
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Model Number: Multiple Models
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Starting Method: |
Direct-on-Line (DOL) |
Pump Configuration: |
Two Pump Control Circuits |
Power Supply Arrangement: |
Normal And Standby Sources |
Power Transfer: |
Automatic Transfer Switching |
Emergency Start: |
Mechanical Emergency Starting |
Cabinet Type: |
Outer Door And Inner Control Door |
Enclosure Protection: |
According To Confirmed Configuration |
Motor Rating: |
Selected To Project Requirements |
Starting Method: |
Direct-on-Line (DOL) |
Pump Configuration: |
Two Pump Control Circuits |
Power Supply Arrangement: |
Normal And Standby Sources |
Power Transfer: |
Automatic Transfer Switching |
Emergency Start: |
Mechanical Emergency Starting |
Cabinet Type: |
Outer Door And Inner Control Door |
Enclosure Protection: |
According To Confirmed Configuration |
Motor Rating: |
Selected To Project Requirements |
Product Overview
YIDISHUI PUMP supplies integrated direct-on-line (DOL) fire pump control panels combining pump starting, dual power source transfer and mechanical emergency starting. The illustrated configuration has two pump control circuits.
Integrated Arrangement

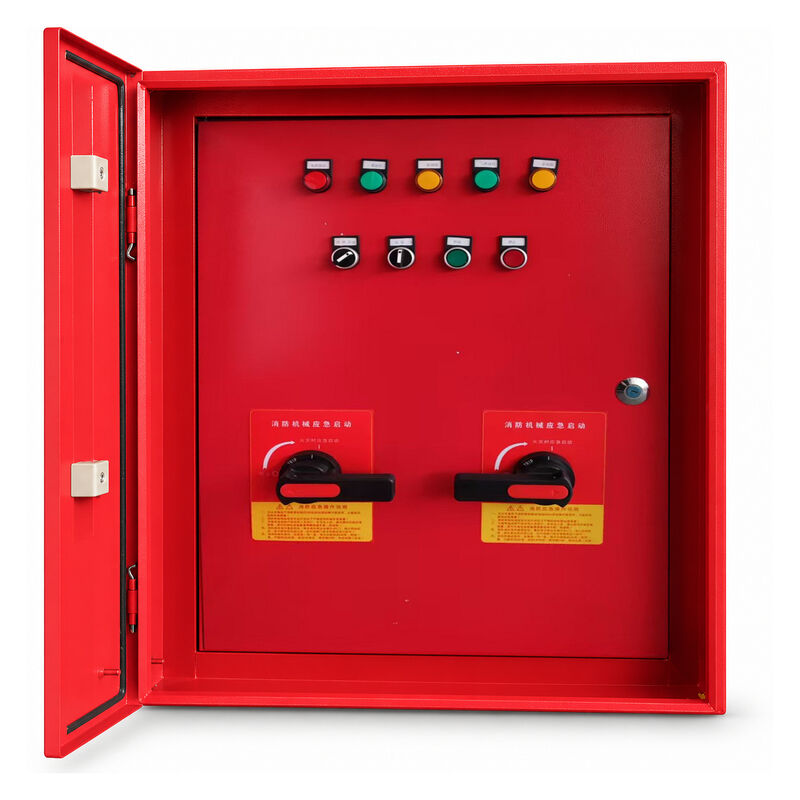

The internal assembly includes an automatic transfer switching device, pump contactors, relays, terminals and mechanical emergency starting mechanisms. A windowed outer door covers the inner control door, which carries operating switches, status lights and two emergency handles.
Project Configuration
Normal and standby source ratings, pump motor ratings, transfer settings, start inputs and external interfaces are defined in the agreed electrical scheme. Enclosure protection and dimensions are confirmed for the selected cabinet. Panels can be supplied separately or with matched fire pump equipment.
