Three Pump Star-Delta Fire Pump Control Panel with Mechanical Emergency Start
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Model Number: Multiple Models
Document: IP55 Enclosure Protection T...rt.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Starting Method: |
Star-Delta (Y-Delta) |
Pump Configuration: |
Two Duty + One Standby |
Number Of Pump Circuits: |
Three |
Emergency Start: |
Three Mechanical Emergency Operating Handles |
Control Interface: |
Digital Fire Pump Controller |
Enclosure Protection: |
IP55 For Shown Enclosure |
Motor Rating: |
Selected To Project Requirements |
Starting Method: |
Star-Delta (Y-Delta) |
Pump Configuration: |
Two Duty + One Standby |
Number Of Pump Circuits: |
Three |
Emergency Start: |
Three Mechanical Emergency Operating Handles |
Control Interface: |
Digital Fire Pump Controller |
Enclosure Protection: |
IP55 For Shown Enclosure |
Motor Rating: |
Selected To Project Requirements |
Product Overview

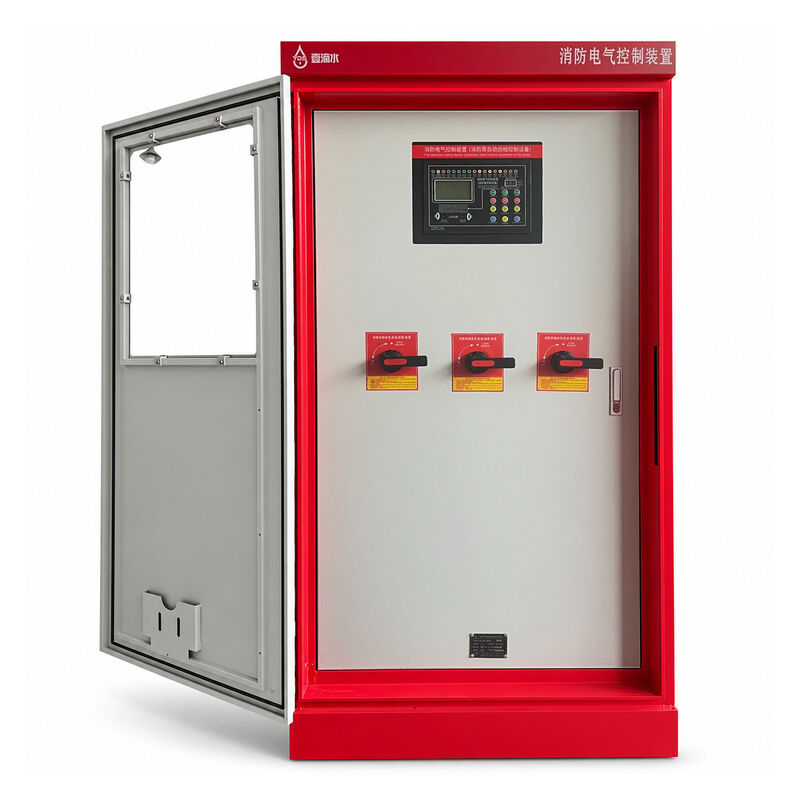

YIDISHUI PUMP supplies three-pump star-delta fire pump control panels for projects requiring two duty pumps and one standby pump. The illustrated configuration includes a digital controller and three mechanical emergency operating handles.
Internal Arrangement
The cabinet combines three pump starting circuits with circuit breakers, emergency starting mechanisms, star-delta contactors, busbar connections and terminals. A windowed outer door covers the separate inner control door.
Project Configuration
Pump ratings, duty and standby logic, starting sequence, controller functions and external interfaces are defined in the agreed electrical scheme. The illustrated outer enclosure carries an IP55 marking. Cabinet dimensions and component brands are confirmed before production.
