Integrated Star-Delta Fire Pump Control Panel with ATS and Float Switch Control
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Model Number: Multiple Models
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Main Starting Method: |
Star-Delta (Y-Delta) |
Emergency Start: |
Mechanical Emergency Starting |
Power Transfer: |
Automatic Transfer Switching |
Power Sources: |
Normal And Standby |
Additional Starting Circuit: |
Float Switch Controlled DOL Circuit |
Enclosure Protection: |
According To Confirmed Configuration |
Motor Rating: |
Selected To Project Requirements |
Main Starting Method: |
Star-Delta (Y-Delta) |
Emergency Start: |
Mechanical Emergency Starting |
Power Transfer: |
Automatic Transfer Switching |
Power Sources: |
Normal And Standby |
Additional Starting Circuit: |
Float Switch Controlled DOL Circuit |
Enclosure Protection: |
According To Confirmed Configuration |
Motor Rating: |
Selected To Project Requirements |
Product Overview
YIDISHUI PUMP supplies integrated control panels combining star-delta fire pump starting, mechanical emergency starting and dual-source power transfer. A separate direct-on-line circuit is included for float switch control according to the project scheme.
Integrated Assembly

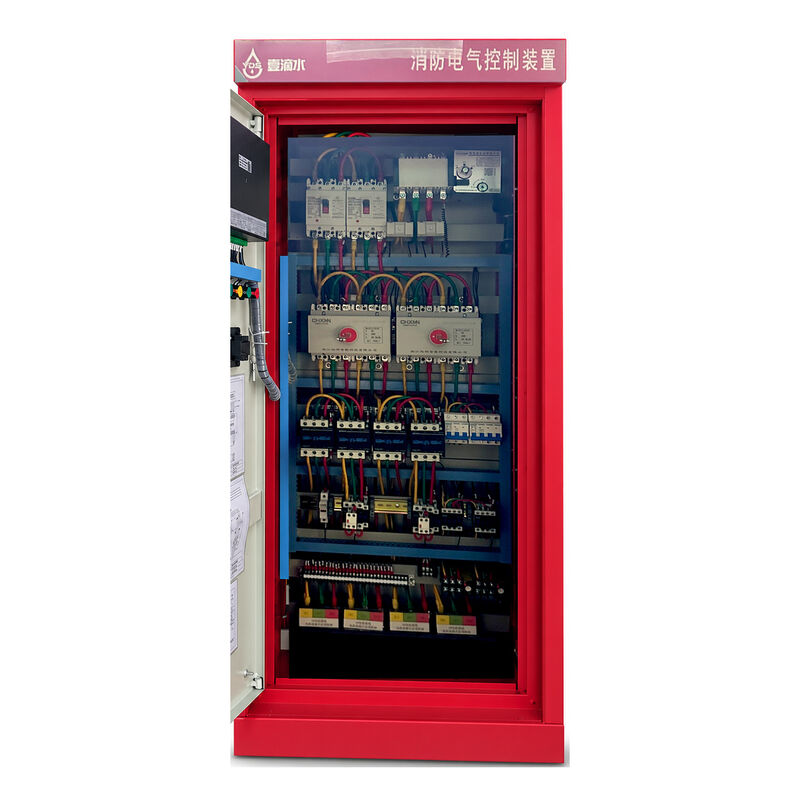

The illustrated internal configuration includes an automatic transfer switching device, pump circuit breakers, emergency starting mechanisms, star-delta contactors, auxiliary control components and terminals.
Project Configuration
The function of the float switch circuit, connected equipment, source ratings, motor ratings, starting sequence and external interfaces are defined in the agreed drawings. Cabinet dimensions, enclosure protection and component brands are confirmed before production. The panel can be supplied with matched pump system equipment.
