Duplex DOL Jockey Pump Control Panel – One Duty One Standby
Product Details
Place of Origin: China
Brand Name: YIDISHUI PUMP
Model Number: YDS-XFZ-1.5
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Price on request
Packaging Details: Export packing according to agreed requirements
Delivery Time: Subject to confirmed configuration and order quantity
Payment Terms: T/T
Starting Method: |
Direct-on-line (DOL) |
Pump Quantity: |
2 For Shown Configuration |
Pump Arrangement: |
One Duty And One Standby |
Application: |
Jockey Pump Pressure Maintenance |
Operating Mode: |
Manual / Off / Auto |
Motor Rating: |
1.5 KW For Shown Unit; Other Ratings On Request |
Rated Voltage: |
380 V For Shown Unit; Other Voltages On Request |
Enclosure Protection: |
According To Confirmed Configuration |
Starting Method: |
Direct-on-line (DOL) |
Pump Quantity: |
2 For Shown Configuration |
Pump Arrangement: |
One Duty And One Standby |
Application: |
Jockey Pump Pressure Maintenance |
Operating Mode: |
Manual / Off / Auto |
Motor Rating: |
1.5 KW For Shown Unit; Other Ratings On Request |
Rated Voltage: |
380 V For Shown Unit; Other Voltages On Request |
Enclosure Protection: |
According To Confirmed Configuration |
Product Overview
YIDISHUI PUMP manufactures duplex DOL jockey pump control panels for pressure-maintenance systems. The illustrated configuration is arranged for one duty pump and one standby pump.
Panel Configuration

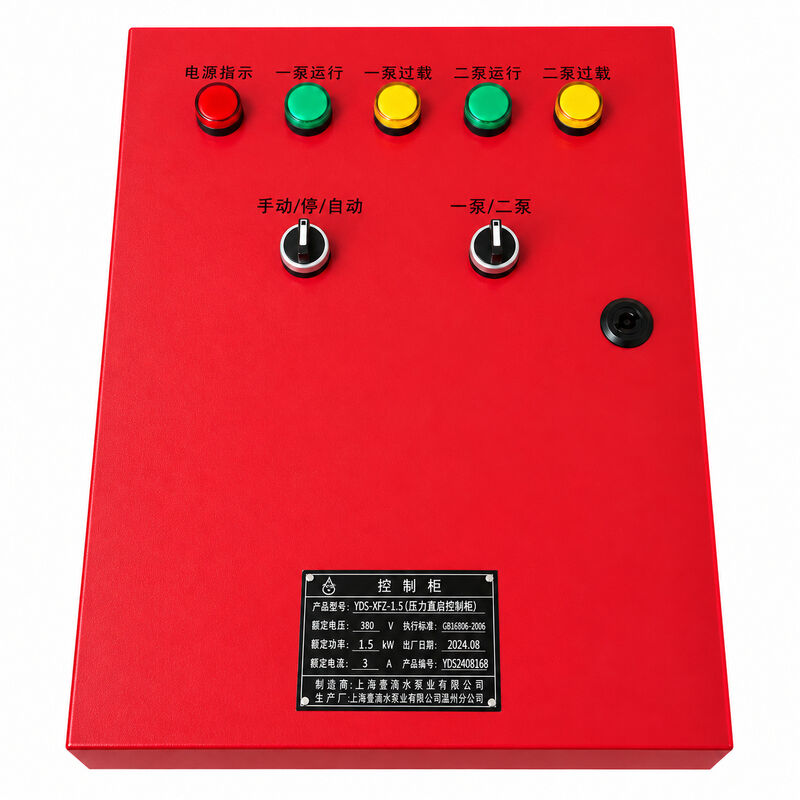

The shown panel includes Manual/Off/Auto selection, pump selection, power indication and individual running and overload indicators. The pictured unit carries a 1.5 kW, 380 V nameplate rating.
Customization and Supply
Pressure-control requirements, duty selection and changeover logic are defined in the agreed control scheme. Motor ratings, power supply, component brands and cabinet dimensions are confirmed for each project. Panels can be supplied separately or matched to a jockey pump system.
